Advantage introduction

Provide heavy lifting of 250kg load for 28% higher efficiency
Build-in multiple pressure control leveling system to enhance stability
Precise load sensing system to improve overload safety operations
Deadweight Lowering System for smooth operation and energy efficiency

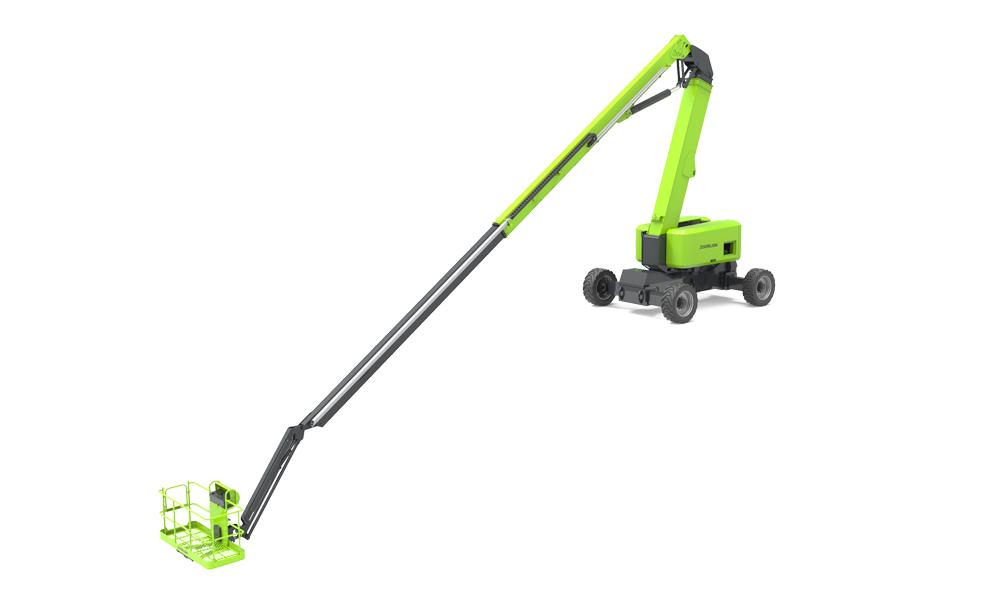

Outstanding below ground reach of 5.7m

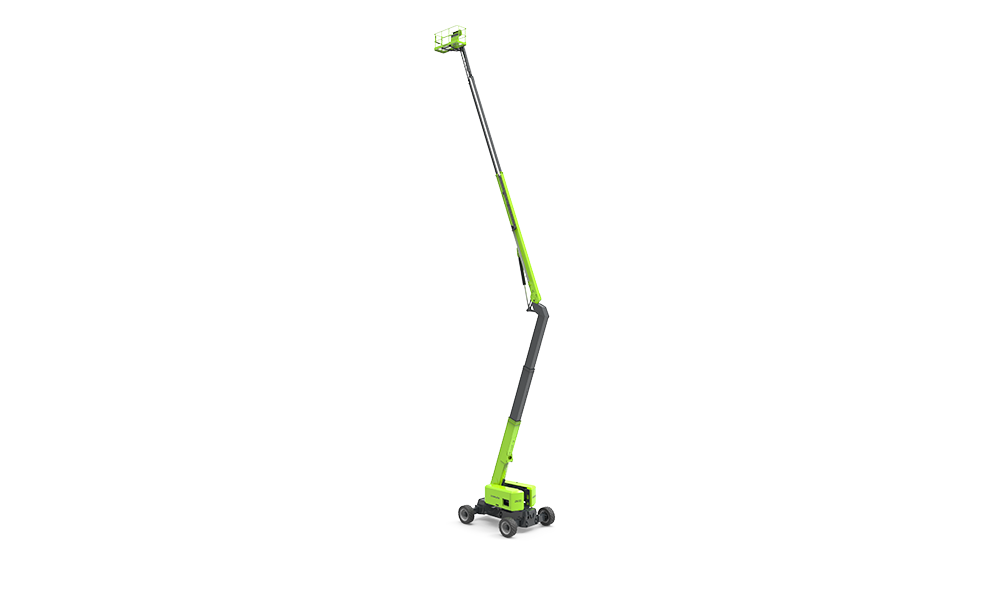

Work Height

33.85m

Platform Height

31.85m

Horizontal Outreach

21.17m

Up and Over Height

14.52m

A - Stowed Length

12.6m

B - Stowed Width

2.49m

C - Stowed Height

3.1m

D - Platform Length

2.44m

E - Platform Width

0.91m

F - Wheelbase

3.81m

G - Ground Clearance

0.42m

Platform Capacity

250kg

Drive Speed

5.2km/h

Gradeability

45%

Axles Oscillation

0.2m

Turning Radius (Inside)

7.7/3.3m

Turning Radius (Outside)

10.8/8.2m

Turntable Swing

360° continuous

Platform Rotation

±90°

H-Tail Swing

Max. Working Slope

Max. Wind Speed

12.5m/s

Diesel Engine

Cummins QSF2.8 54kw/2400rpm
Kubota V2607 55.4kw/2700rpm

Engine Power

Fuel Tank Capacity

200L

Auxiliary Power

12V

Control Voltage

12V

Hydraulic System Capacity

300L

Hydraulic Tank Capacity

200L

Type

445/50D710 Foam-filled Tires

Gross

19200kg

Standard

Horn
Flashing beacon
Emergency descent system
Load sensing system
All motion alarm
Auto-leveling system
On-board diagnostic system
Swing-out engine tray
Proportional control
Emergency stop button
Oscillating axle
Self-closing entry gate
Over tilt protection system
4.3' LED display

Option

Platform work lights
Anti-collision device
AC power to platform
